SVN 60-40
The machine features a single-axis structure with a 600 mm cutting length.
The diamond wire remains fixed, and cutting is done manually by pushing the material through the wire.
With only two buttons—power on and off—it is extremely easy to operate.
The highlight of this Entry-Level Wire Cutting Machine is it’s our simplified cutting solution—designed for ease of use and affordability.
Key Advantages:
Simple operation, no technical experience required
Manual feed for flexible material handling
Low-cost solution for basic cutting needs
Compact and reliable for everyday use
Ideal for labs, workshops, and entry-level production
| No. | Name | Specification |
| 1 | Maximum Workpiece Length (mm) | 600 |
| 2 | Maximum Workpiece Width (mm) | no limit |
| 3 | Maximum Workpiece Height (mm) | 400 ( can be customized) |
| 4 | Worktable X-Axis Travel (mm) | 600 |
| 5 | Worktable Y-Axis Travel (mm) | none |
| 6 | Spinder Motor Power(kw) | 1.57 |
| 7 | Speed of Motor(r/min) | 0.01 |
| 8 | Minimum Feed Increment Z-Axis (mm) | 3850 |
| 9 | Wire Grooves on wheel | 4 |
| 10 | Powe Supply | 220 V |
| 11 | Total Power Consumption (kW) | 1.57 |
| 12 | Machine Size(mm) | 1600*850*1600 |
| 13 | Machine Weight(kg) | 420 |
Click To Watch More Videos Showing Our Cutting Machine In Action.
On-site Cutting Effect Showcase
Entry-Level Wire Cutting Machine Product Description
This compact, entry-level wire cutting machine is designed for users who require a simple, budget-friendly solution for slicing hard and brittle materials. It features a fixed-position endless diamond wire and a single-axis setup with a 600 mm cutting length. Users only need to manually push the material through the wire to complete the cut. With just two buttons—Start and Stop—the machine is extremely easy to operate, making it ideal for laboratories, workshops, and beginner users.
KEY FEATURES
Simple Operation: Manual feed, two-button control
Affordable: Cost-effective solution for basic cutting needs
Compact Design: Small footprint, easy to install and maintain
Low Maintenance: No complex moving parts, minimal wear
Flexible Application: Suitable for cutting small samples of ceramics, glass, graphite, and more
PRODUCT DETAILS

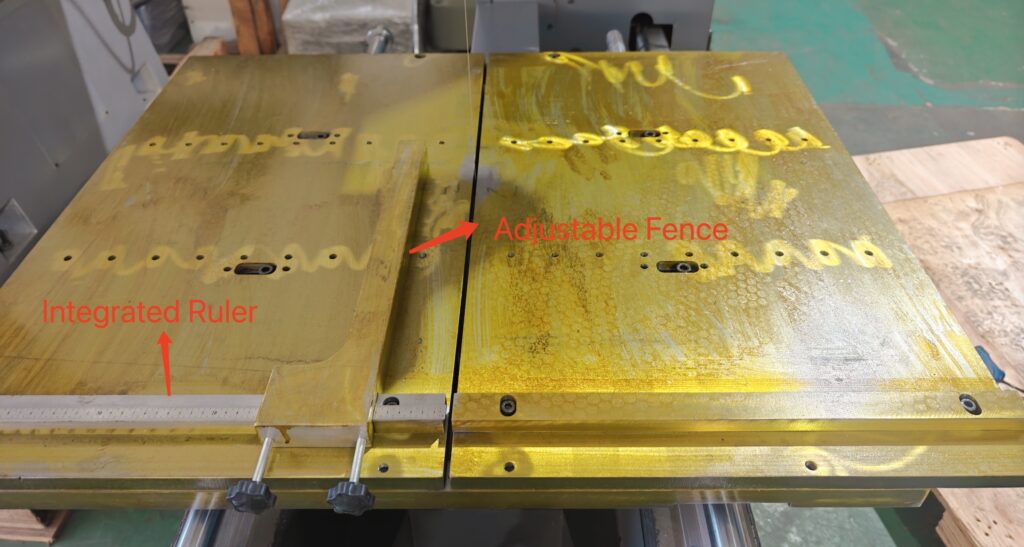

Integrated Ruler
A precision scale is embedded along the worktable, enabling users to quickly measure and verify the cutting length of the workpiece. This feature enhances cutting accuracy and repeatability, especially when handling multiple pieces of the same size.
Adjustable Fence
The machine is equipped with a built-in adjustable fence on the worktable. This right-angle guide helps users position the workpiece accurately and keeps it stable during manual cutting. It also acts as a safety barrier to protect the operator’s hands from accidental contact with the cutting wire.
PRODUCT COMPARISON
Our Endless Diamond Wire Cutter vs. Metal Blade Saws
| Feature / Parameter | Our Entry-Level Diamond Wire Cutter | Metal Saw Blade (Circular Saw) | Metal Bandsaw |
|---|---|---|---|
| Cutting Tool Type | Endless diamond wire | Carbide or high-speed steel circular blade | Bi-metal or HSS continuous blade |
| Material Compatibility | Hard and brittle materials: ceramics, quartz, glass, graphite | Metals, wood, plastics | Mainly metals and soft materials |
| Surface Finish | Smooth, nearly polishing-free | Rough, burrs, often requires post-processing | Moderate, visible saw marks |
| Kerf Width (Cutting Loss) | Very narrow (0.35–0.8 mm) | Wide (1.5–3 mm typical) | Moderate (1–2 mm typical) |
| Cutting Accuracy | High for manual machine | Medium to low | Medium |
| Chipping/Cracking Risk | Very low – ideal for brittle materials | High – not suitable for ceramics or glass | High – not suitable for brittle materials |
| Operation Safety | No sparks, low noise, clean cut | Generates heat, sparks, and noise | Generates vibration, noise, potential kickback |
| Maintenance Requirements | Very low – only wire replacement | Frequent blade changes and sharpening | Blade alignment, tensioning, wear issues |
| Cutting Method | Manual push-through | Manual push-through | Manual push-through |
Porous Metal
Energy storage industry
Endless diamond wire can cut porous metal fact and clean withut damage the material structure
Graphite Machining
Semiconductor & Solar Industry
It’s widely used to cut differnt size graphite products such as graphite boat, Electrodes,Molds, Industrial Furnace Components, Graphite Crucibles, Battery Anodes…
Carbon-Carbon Composites
Aerospace,Automotive Industry
Our endless wire saw can cut carbon- carbon material without delamination,
Green Body Ceramic
Ceramic Ceramic
The cutting speed of green ceramics is very fast, and the cutting angle of special shapes is also perfect.
Corrugated Paper Board
Pet & Packing Industry
This machine can cut Corrugated paper very fast and maintain paper structure, widly used to cut cat scrath boad.
Exceptional Sharpness
Superior Surface Quality

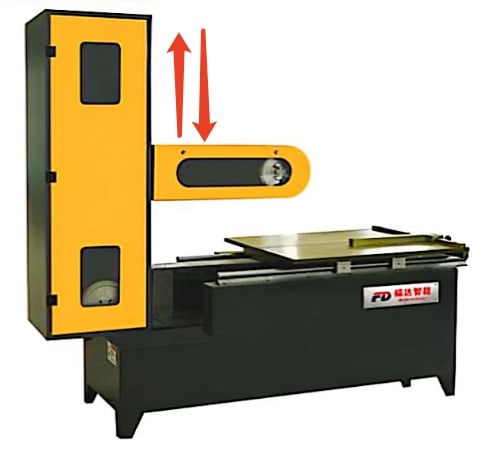

Adjuestable Cutting Height
Minimal Kerf Width
Low Dust Emissions
High Precision
What is a manual-feed endless diamond wire saw?
Unlike automatic models, the operator pushes the workpiece by hand to feed it into the moving wire, suitable for laboratory testing and small-scale material cutting.
How does a manual-feed wire saw work?
The machine runs the diamond wire loop continuously in one direction at high speed.
The operator gently pushes the workpiece toward the wire to control cutting depth and speed manually.
What are the advantages of a manual-feed model?
Simple structure and low cost
Ideal for R&D laboratories, universities, and small workshops
Easy to observe cutting behavior and adjust parameters manually
Same precision wire system as Vimfun automatic machines
What materials can be cut manually on this endless wire saw?
The manual-feed endless wire saw can process sapphire, ceramics, silicon, quartz, and graphite.
It is especially useful for sample preparation, small ingot cutting, and prototype testing.
What is the cutting accuracy of the manual-feed machine?
The diamond wire itself ensures smooth surfaces and no significant chipping or cracks.
What wire speed does the machine operate at?
Wire tension is maintained automatically to ensure consistent performance.
What is the maximum workpiece size?
Larger custom stages can be provided upon request.
Can the manual model be upgraded to automatic feeding?
Yes. Vimfun offers an upgrade automatic model.
How to maintain the manual-feed diamond wire saw?
Check wire tension and replace the loop when cutting speed decreases.
Lubricate moving parts monthly for smooth operation.
How does this model compare with automatic endless wire saws?
Automatic models use servo feed systems for production cutting.
Both share the same cutting wire technology and core precision design.
