Sapphire Cutting Solutions – Chip-Free Precision for LED, Aerospace & Semiconductor

Our sapphire cutting solution uses an endless diamond wire saw with white mineral oil cooling — delivering chip-free edges, Ra ≤ 0.8 μm surface finish, and rotary cut capability for the world's second-hardest material.

Freier Testschnitt Angebot anfordern

9 Mohs

Sapphire hardness

≤0.8μm

Oberflächenrauheit

360°

Rotary cut option

Verwandte Lösungen: Graphit schneiden SiC-Schneiden Schneiden von Saphiren Quarzglas Optisches Glas Siliziumblock Magnetschneiden

Die Herausforderung

Why Every Sapphire Cutting Solution Must Overcome These 4 Processing Challenges

Sapphire ranks 9 on the Mohs hardness scale — second only to diamond. Its extreme hardness, combined with brittleness and sensitivity to micro-cracking, makes it one of the most difficult materials to cut cleanly. Choosing the right sapphire cutting solution is critical: the wrong method introduces edge chipping, subsurface cracks, and thermal damage that degrade wafer quality and increase polishing costs.

Whether you are producing LED substrates, aerospace infrared windows, or consumer electronics cover glass, the stakes are high — sapphire is an expensive material where any processing damage translates directly into yield loss and rework cost. A reliable sapphire cutting solution must balance cutting speed against surface integrity at every step.

✕
Edge chipping & micro-cracks — High cutting forces fracture sapphire's crystal lattice, creating subsurface damage that propagates during subsequent polishing and epitaxial growth
✕
Extreme hardness limits feed speed — At Mohs 9, sapphire can only be cut at 0.1–0.8 mm/min; tools that push faster cause wire bow, wafer warpage, and surface defects
✕
Thermische Empfindlichkeit — Sapphire's thermal expansion properties mean heat generated during cutting can introduce residual stress and crystal defects invisible to the naked eye
✕
Complex geometry requirements — Aerospace domes, optical prisms, and cylindrical windows require multi-axis cutting that conventional ID saws and band saws cannot achieve

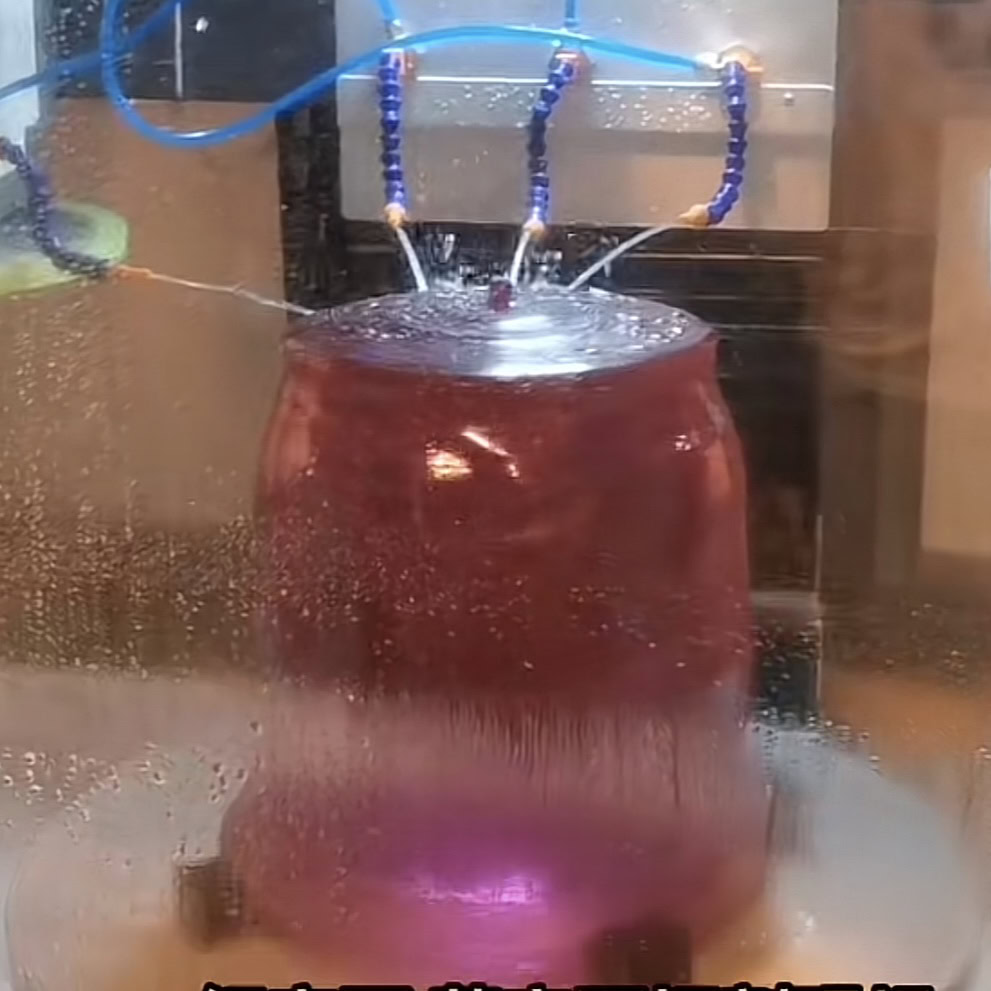

Sapphire crystal boule — material for endless diamond wire saw sapphire cutting solution

Technische Parameter

Sapphire Cutting Solution: Recommended Wire Saw Parameters

Sapphire demands the most conservative cutting parameters of any hard material we process. The parameters below are validated reference values from real sapphire machining deployments. They form the technical foundation of our sapphire cutting solution and should be refined by trial cutting for your specific application.

Referenzparameter

Sapphire — Cutting Parameter Range

0.5 – 0.65 mm

Drahtdurchmesser

100 – 140 N

Drahtspannung

30 – 60 MS

Drahtgeschwindigkeit

0.1 – 0.8 mm/min

Vorschubgeschwindigkeit

White oil

Kühlmethode

≤0.8 μm

Oberflächenrauheit

Why so slow? Sapphire's Mohs 9 hardness means material removal is extremely slow by nature. Feed speeds above 0.8 mm/min cause the wire to bow excessively under cutting resistance — increasing kerf deviation, introducing wafer warpage, and risking edge chipping. Slow, stable cutting is the only reliable sapphire cutting solution for precision applications. White mineral oil lubricates the wire and removes heat without chemical reactivity.

Metrisch	ID Saw (disc)	Bandsäge	★ Endlose Drahtsäge (Vimfun)
Schnittbreite	0,3 – 0,5 mm	1.5 – 3.0 mm	✔ 0.55 – 0.7 mm
Edge chipping	Mäßig	Severe	✔ Minimal — low cutting force
Surface quality (Ra)	0.4 – 1.0 μm	2.0 μm+	✔ ≤ 0,8 μm
Maximale Werkstückgröße	Small (< Ø 150mm)	Large, poor precision	✔ Up to 400 × 400 mm
Rotary / dome cuts	✕ Nur geradeaus	✕ Nur geradeaus	✔ 360° rotation available
Thermische Belastung	Medium — disc friction	High — blade friction	✔ Low — oil-cooled wire
Unterirdische Schäden (SSD)	Mäßig	Hoch	✔ Minimal — abrasive grinding

Sapphire cut surface by Vimfun endless diamond wire saw — chip-free smooth finish

Warum endlose Kabel

6 Reasons Our Sapphire Cutting Solution Outperforms ID Saws & Band Saws

The endless loop wire acts as a high-speed abrasive string — grinding through sapphire's crystal structure at the micro-level rather than fracturing it. At 30–60 m/s with stable tension control, it delivers the surface quality and geometric precision that sapphire applications demand.

≤0.8μm

Oberflächenrauheit Ra

Chip-free edges and smooth Ra ≤ 0.8 μm surface finish. For LED substrates, this directly reduces the epitaxial polishing allowance needed before wafer processing — a significant cost saving.

360°

Rotary Cut Capability

The SG20-R's 360° rotation axis enables cylindrical cuts, dome shaping, and rotary slicing from a single clamping setup — essential for aerospace sapphire windows and optical components.

Niedrig

Subsurface Damage

Endless wire cutting generates minimal subsurface damage (SSD) compared to ID saws and blade cutting. Lower SSD depth means less material removed in downstream polishing steps.

0.5mm

Min Wire Diameter

Fine 0.5mm wire minimizes kerf width and material loss. For high-value sapphire crystal, every millimeter of saved material reduces cost per component significantly.

Swing

Oscillating Cut Mode

The SGSM 40's swinging cut technology improves cutting stability for flat substrate production — reducing surface waviness and delivering more consistent slice thickness across the batch.

±0.03mm

Präzision beim Schneiden

CNC servo-controlled feed achieves ±0.03mm dimensional accuracy. Critical for sapphire substrates where wafer thickness uniformity directly affects epitaxial layer quality.

In Aktion

Watch: Sapphire Crystal Cutting with Endless Diamond Wire

This video demonstrates Vimfun's sapphire cutting solution in action. White mineral oil provides continuous lubrication and cooling throughout the cut — protecting both the wire and the crystal from thermal stress. The controlled low feed rate ensures chip-free edges and minimal subsurface damage on every slice.

White mineral oil cooling — prevents thermal stress and crystal defects
Feed speed 0.1–0.8 mm/min — controlled to prevent wire bow and warpage
No reversal marks — unidirectional wire produces consistently smooth surface
CNC automated multi-slice — programmable thickness control for batch production
360° rotary axis option — dome and cylindrical cuts in a single setup

Alle Schneidevideos ansehen

Anwendungen in der Industrie

3 Industries Where Our Sapphire Cutting Solution Delivers Results

Sapphire's unique combination of extreme hardness, optical transparency, and chemical inertness makes it irreplaceable across high-tech industries. Vimfun's sapphire cutting solution serves manufacturers in each sector — where surface quality, dimensional precision, and crystal integrity are non-negotiable.

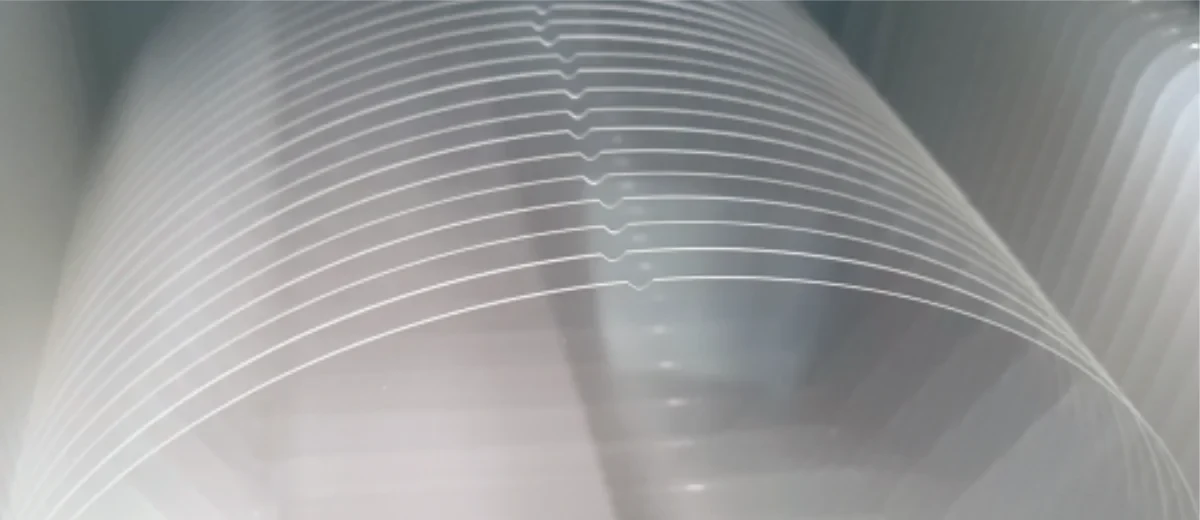

Sapphire LED substrate cutting solution — endless diamond wire saw wafer slicing

LED & Semiconductor

LED Sapphire Substrate Slicing & Wafer Preparation

Sapphire is the dominant substrate material for GaN-based LED production. The substrate's surface quality directly impacts the quality of the epitaxial GaN layer grown on top — making the cutting step critical to final device performance.

Our sapphire cutting solution achieves Ra ≤ 0.8 μm and minimal subsurface damage, reducing the polishing allowance before epitaxy and improving yield across the downstream production chain.

Explore semiconductor sapphire applications →

Sapphire aerospace infrared window cutting solution — optical dome component

Aerospace & Defense

Infrared Windows, Missile Domes & Satellite Sensor Covers

Sapphire's combination of optical transparency (IR spectrum), extreme hardness, and thermal shock resistance makes it the material of choice for aerospace protective optics — from missile guidance domes to satellite sensor windows.

These components often require complex curved or domed geometries. Vimfun's SG20-R with 360° rotary cutting and SH60-R with horizontal rotation enable near-net-shape cutting of cylindrical and dome blanks — significantly reducing subsequent grinding time.

Explore sapphire aerospace cutting →

Consumer Electronics

Watch Glass, Camera Lens Protectors & Display Cover Substrates

Sapphire's scratch resistance (Mohs 9) makes it ideal for premium consumer electronics: luxury watch glass, smartphone camera lens covers, and high-end display substrates. These applications demand tight thickness tolerances and optically clear cut surfaces.

The SGSM 40's swinging cut technology delivers flat, consistent slices with minimal surface waviness — meeting the strict flatness requirements for optical-grade sapphire components in consumer devices.

View glass and sapphire wire saw machines →

Empfohlene Ausrüstung

3 Machines for Every Sapphire Cutting Application

Vimpuns sapphire cutting solution is available across three machine configurations — from flat substrate slicing and oscillating cuts to rotary dome cutting and large horizontal sapphire block processing. All use white mineral oil cooling and precision servo tension control.

SGSM 40

Schwenkbare Diamantdrahtschneidegeräte

Maximales Werkstück400 × 400 × 375 mm
SchnittartSwing cut, straight slicing
Drahtdurchmesser0.5 – 0.65 mm
StrukturGantry type
Am besten geeignet fürFlat substrate batch slicing

Maschinendetails anzeigen

SH60-R

Horizontal Rotary Endless Wire Saw

Maximales WerkstückØ 600 × H 400 mm
SchnittartHorizontales + rotierendes Schneiden
Drahtdurchmesser0.5 – 0.65 mm
StrukturHorizontal, 3-axis
Am besten geeignet fürLarge cylindrical sapphire blanks

Maschinendetails anzeigen

SG20-R

Oscillating Diamond Wire Saw — 360° Rotation

Maximales Werkstück200 × 200 × 200 mm
SchnittartSwing + 360° rotation
Drahtdurchmesser0.5 – 0.65 mm
StrukturGantry, 3-axis
Am besten geeignet fürDomes, cylinders, watch glass

Maschinendetails anzeigen

Need a custom sapphire cutting solution for non-standard geometries or sizes? Fordern Sie eine individuelle technische Beratung an →

Echte Ergebnisse

Sapphire Cutting Samples: Surface Quality from Vimfun's Test Cut Service

Der beste Weg, um jedes sapphire cutting solution is real results on your own material. Send your sapphire crystal or wafer blank to Vimfun — we return the cut samples with a full surface roughness (Ra), kerf width, and dimensional accuracy report at no cost.

Chip-free edge, no micro-cracks

Surface roughness Ra ≤ 0.8 μm

Multi-slice — uniform thickness

Rotary cut — dome & cylinder

Free Sapphire Test Cut Service

Send your sapphire crystal, wafer blank, or boule to Vimfun. Our engineers perform a test cut and provide a full report covering surface roughness (Ra), kerf width, dimensional accuracy, and machine recommendation — at no cost.

Jetzt für einen kostenlosen Probeschnitt anmelden! Chatte auf WhatsApp

FAQ

Common Questions About Sapphire Cutting Solutions

What is the best sapphire cutting solution for LED substrate production?

Endless diamond wire saw is the most effective sapphire cutting solution for LED substrate work. The SG20-R with 360° rotation enables both straight slicing and rotary cuts from a single setup, producing chip-free edges and Ra ≤ 0.8 μm surface finish suitable for direct epitaxial growth — minimizing costly secondary polishing. For high-volume flat substrate batches, the SGSM 40's swinging cut delivers excellent consistency.

Why is sapphire so difficult to cut?

Sapphire ranks 9 on the Mohs hardness scale — second only to diamond. Its extreme hardness, combined with brittleness and sensitivity to thermal stress, means high-force cutting tools cause edge chipping, micro-cracks, and subsurface damage. The key to a successful sapphire cutting solution is very slow feed speed (0.1–0.8 mm/min), stable wire tension, and effective oil cooling to prevent thermal stress.

What coolant is recommended for sapphire cutting?

White mineral oil (industrial white oil) is the recommended coolant for sapphire cutting. It provides effective lubrication and heat removal without the chemical reactivity of water-based fluids. The oil also acts as a cutting fluid that carries debris away from the cut zone, protecting both the wire and the sapphire surface from contamination and thermal damage.

What feed speed is used for sapphire cutting?

Feed speed for sapphire cutting is 0.1–0.8 mm/min — significantly slower than softer materials like graphite (50–100 mm/min). The slow feed is essential to prevent wire bow from the extreme cutting resistance of Mohs 9 sapphire. If feed speed is too high, the wire curves under load, causing dimensional deviation and surface waviness. Once your optimal parameters are found, they should be kept stable — our engineers can help set these during the free test cut.

Can the wire saw cut sapphire into complex shapes such as domes and cylinders?

Yes. Vimfun's SG20-R offers 360° rotation cutting for cylindrical and domed sapphire components — covering aerospace IR window domes, cylindrical optical elements, and round watch glass blanks. The SH60-R handles larger cylindrical blanks up to Ø 600mm. Both machines enable complete shape cutting from a single clamping, eliminating repositioning errors.

What is the cutting precision for sapphire wire saw machines?

Our sapphire cutting solution achieves dimensional accuracy of ±0.03mm. As with all flexible wire cutting, the actual precision depends on maintaining correct feed speed and wire tension throughout the cut. Faster feed or lower tension increases wire bow and reduces dimensional accuracy. Our machines use servo-controlled feed and automatic tensioning to maintain consistent parameters across long production runs.

Ready to Improve Your Sapphire Cutting Process?

Talk to a Vimfun cutting engineer about your sapphire processing requirements — wafer size, geometry, surface quality targets, and production volume. Get a free test cut, a machine recommendation, or a custom solution for complex shapes.
