SH200-R
The Horizontal type Quartz Cutting Wire Saw Machine is a Diamond Wire Saw which has big advantages on huge size material cutting, Specially suitable to processing hard and brittle material,such as silicon, glass, sapphire, quartz, jade, and other materials .
Through a high-speed diamond wire loop, this equipment achieves a processing technique for cutting workpieces. It is a new type of equipment with reliable functionality, high cutting efficiency, and high processing accuracy.
| No. | Item | Content |
| 1 | Loading Worktable Size | dia 1750 mm |
| 2 | Y-axis, Z-axis Travel | 1070*600 mm |
| 3 | Maximum Product Size | dia 2000 *600 mm |
| 4 | Worktable Load | 5000 Kg |
| 5 | Maximum Lina Speed | 42 m/s |
| 6 | Maximum loading table rmp | 10 r/min |
| 7 | Diamond Wire Diameter | ∮0.65～1.0 mm |
| 8 | Positioning Accuracy | ±0.02 mm |
| 9 | Processing Accuracy | ≤0.1 mm |
| 10 | Surface Roughness (Ra) | Ra ≤ 60 μm |
| 11 | Maximum Sylinder Force | 377 N |
| 12 | Total Power | 6 KW |
| 13 | Operating Voltage | 220V 50Hz ±10％ |
| 14 | Ambient Temperature | 10℃～30℃ |
| 15 | Equipment Dimensions | 3860*2660*1950 mm |
The cutting tool used by the equipment is also the latest ring-shaped diamond wire. By forming the diamond wire into a closed loop, the one-way movement of the cutting wire is achieved, which greatly improves the linear speed and the smoothness of the cutting surface. It is a cutting machine with good precision .
Diamond Wire Loop has 3 different types: Full coating ,Segment Coating and Thread Coating. Each has it’s advanagtes.
Click here to learn more about Cutting wire loops.

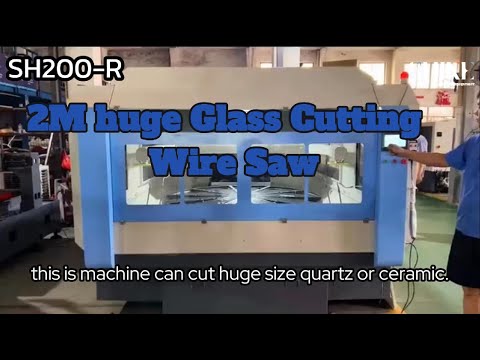

SH200-R Quartz Cutting Wire Saw Machine
Customer On-site Cutting Effect Showcase

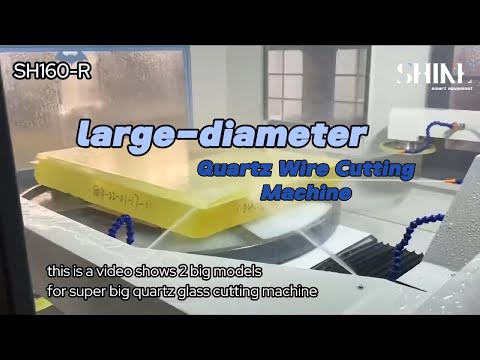

Except Sh200 there are several other machine size for your choice
Instead of a big loading table, the loading table can be customized with 3 or 2 smaller tables .
Click To Watch More Videos Showing Our Cutting Machine In Action.
Optoelectronics
diamond wire saw for glass
The cutter is employed to shape synthetic sapphire and other crystals used in LED and laser technologies.
Scientific Research Institute
Quartz Cutting Wire Saw Machine
The cutter is employed to shape synthetic sapphire and other crystals used in LED or laser technologies.
Jewelry and Luxury Goods
Quartz Cutting Wire Saw Machine
Crafting of large gemstones and sapphire glass for watches and high-end electronics displays.
Ceramic industry
Quartz Cutting Wire Saw Machine
This machine model can cut industrial ceramic such as Alumina (Aluminum Oxide), Silicon Carbide, Zirconia, Cordierite, Titanate…
Semiconductor Industry
Sic Cutting Wire Saw Machine
This machine is used for slicing quartz and other crystal substrates, which are foundational for semiconductor wafers and chips.
Unprecedented Cutting Speed
Superior Surface Quality
High Precision Cutting
Heavy-Duty Design
Integrated Rotary Table
Small Kerf Loss
What is the maximum thickness the machine can handle for cutting?
What is biggest material size we can cut?
The biggest material dia is 2 meters.
How does the machine minimize material waste during cutting?
What is the expected lifespan of the diamond wire, and is it user-replaceable?
Does the machine require a specialized environment or setup conditions?
What kind of technical support and warranty do you offer with the purchase of this equipment?

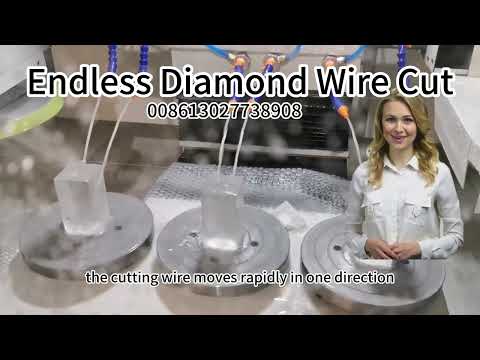

What is an endless diamond wire saw?
An endless diamond wire saw uses a closed-loop diamond wire, typically around 10 meters long, running continuously in one direction at a high linear speed (up to 80 m/s).
Unlike traditional wire saws that use long reciprocating wires, the endless wire saw operates smoothly without reversing direction, resulting in higher stability, faster cutting speed, and superior surface quality.
How is it different from a traditional wire saw?
Traditional wire saws use kilometers-long wires moving back and forth, which require direction changes and tension adjustments.
The Vimfun endless wire saw eliminates this by using a short closed loop that moves continuously in one direction.
This improves cutting efficiency, extends wire life, and produces a cleaner, more precise cut.
What materials can be cut using an endless diamond wire saw?
The Vimfun endless diamond wire saw can cut hard and brittle materials such as silicon, sapphire, ceramics, graphite, glass, and carbon fiber composites.
It is widely used in semiconductor, solar, optical, and advanced materials processing industries.
What is the wire speed and tension of endless wire saw in operation?
The diamond wire runs at a linear speed of 60–80 m/s with tension between 150–250 N.
These parameters ensure high cutting efficiency and stable motion, producing consistent cutting surfaces across various materials.
What is the precision level of the endless diamond wire saw machine?
Vimfun endless diamond wire saws ensures cutting precision within ±0.03 mm, suitable for high-value materials that demand extremely fine tolerances.
What is the cutting surface roughness of vimfun diamond wire saw?
Vimfun endless diamond wire saws achieve surface roughness below Ra 0.5 μm, depending on the material.
How to choose the right Vimfun endless diamond wire saw model?
Model selection depends on workpiece size, material hardness, and precision requirements.
- Our engineers can assist in parameter optimization for your application.
How to maintain and calibrate the endless diamond wire saw equipment?
Routine maintenance includes wire inspection, tension calibration, and lubrication of moving parts.
Vimfun Diamond Wire saw features automatic wire tension control and automatic lubrication, simplifying operation.
Calibration can be performed before each cutting batch using the built-in digital interface.
