Technical Guide for High-Precision Applications

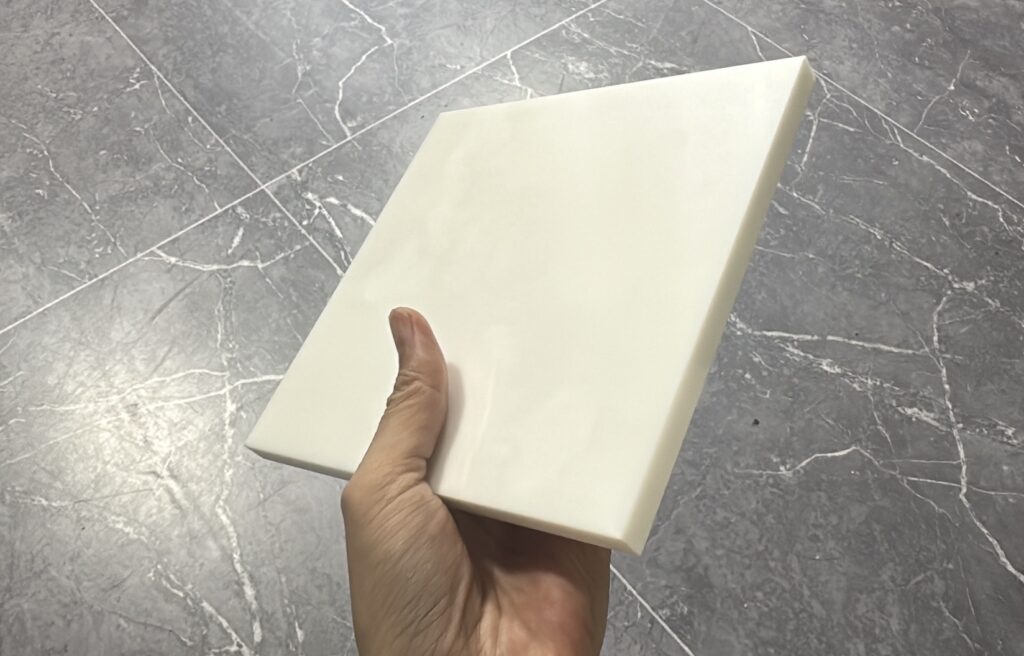

This article presents a comprehensive technical guide of Cutting Zirconia Ceramics, covering cutting challenges, optimized process parameters, quality targets, and the unique advantages of endless diamond wire technology for industries such as medical implants, dental prosthetics, optics, and semiconductors.
1. Material Characteristics of Zirconia Ceramics
Zirconia (ZrO₂) is a high-performance ceramic widely applied in medical, optical, semiconductor, and high-wear industries. Its machining behavior is defined by:
- High hardness: Mohs ~8–8.5, bending strength up to 1200 MPa.
- Transformation toughening: Stress-induced phase change improves toughness but complicates crack control.
- Brittle fracture tendency: High density with limited plasticity.
- Thermal sensitivity: Overheating causes micro-cracks and edge chipping.
Applications: dental crowns, implants, optical lenses, wear-resistant parts, SOFC electrolytes.
2. Cutting Challenges
Conventional machining struggles with zirconia due to:
- Edge chipping and micro-cracking.
- Difficulty controlling subsurface damage (SSD).
- High cutting forces causing crack propagation.
- Wire marks and excessive tool wear with traditional saws.
3. Endless Diamond Wire Saw Advantages
Our endless diamond wire saw addresses these challenges:
- High-speed closed loop (up to 84 m/s) → stable and uniform cutting.
- One-direction motion → no reversal stress.
- Low-force cutting → reduced SSD and micro-cracking.
- Excellent surface finish → minimal or no polishing required.
- Longer tool life due to stable abrasive usage.
4. Recommended Cutting Parameters
| Parameter | Recommended Range | Notes |
|---|---|---|
| Wire linear speed | 60–90 m/s (nominal 60) | Higher speed = smoother finish |
| Feed rate | 0.01–0.2 mm/min | Start at 0.02 mm/min for zirconia |
| Wire tension | Medium–high | Optimize to minimize vibration |
| Diamond grit size | 60-200 µm (fine) | Coarse grit only for rough cutting |
| Coolant supply | High-volume, continuous | Oil-based coolant preferred |
| Cutting mode | Constant-force | Forcewise feed prevents sudden cracking |
5. Workholding & Process Notes
- Support parts with backing plates to reduce stress.
- Secure thin walls to prevent resonance.
- Use conservative settings for optical/medical parts.
- Apply multi-step cutting for thick sections.
6. Quality Targets
| Metric | Target Value |
|---|---|
| Surface roughness (Ra) | <0.8 µm (optical-grade) |
| Subsurface damage (SSD) | <20–50 µm (application-dependent) |
| Defects | No through-cracks or large chipping |
| Kerf straightness | Meets optical/assembly tolerances |
7. Troubleshooting
- Chipping/Burrs → reduce feed, use finer grit, increase coolant, improve support.
- Micro-cracks/Discoloration → reduce wire speed or increase coolant flow.
- Wire breakage → check tension, guide alignment, abrasive adhesion.
- Slow cutting → slightly increase feed, monitor SSD.
8. Validation Workflow
- Sample test matrix: vary wire speed, feed, grit.
- Microscopic evaluation: optical/SEM/section analysis of SSD.
- Customer sample validation: full-size test under target application conditions.
10. Conclusion
Zirconia’s hardness and brittleness make it difficult to machine with conventional tools. The endless diamond wire saw provides a breakthrough solution: high-speed, low-force, precision cutting with minimized surface damage and reduced polishing requirements.
This technology is ideally suited for medical implants, dental prosthetics, optics, semiconductors, and advanced ceramics manufacturing, where both productivity and quality are critical.
Contact us to request free sample cutting or a technical demonstration.
