Act I: The Confident Beginning

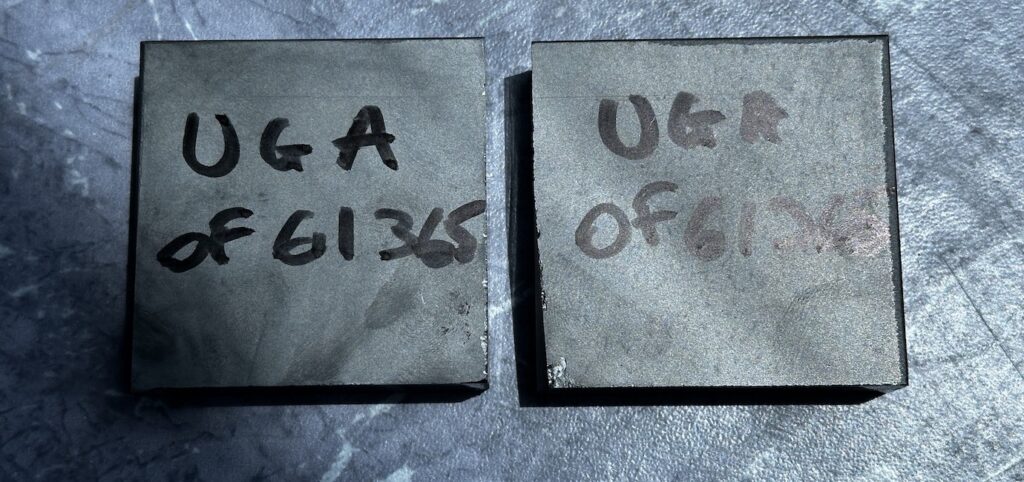

Our story begins with an exciting challenge: using our cutting-edge technology—a endless diamond wire cutting machine—to conquer a material known for its immense hardness, Silicon Carbide (SiC). The SiC cutting test client’s request seemed straightforward: cut several precise cylinders from a single SiC block.

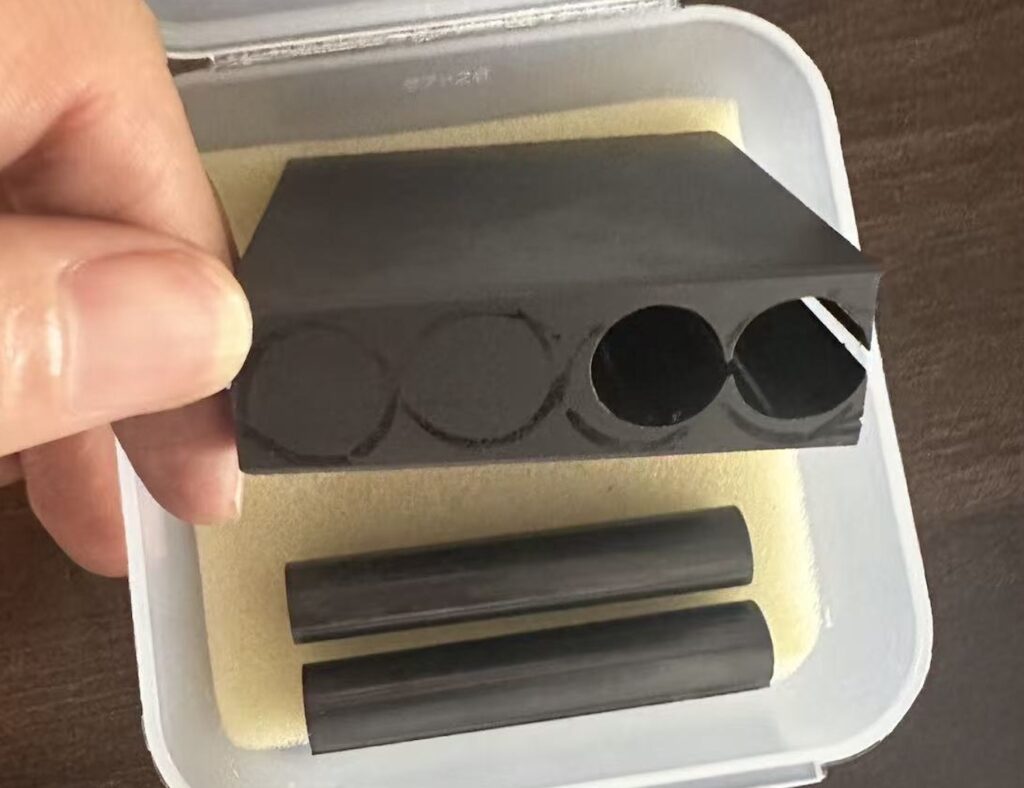

We were full of confidence. We had successfully completed a similar project before, flawlessly cutting cylinders from a different type of SiC. The previous results were so perfect, with smooth cuts and precise dimensions, that we were certain this new test would be a quick and easy victory. Eagerly, we initiated the process, our diamond wire moving at high speed, ready to slice through the material like last time.
Click here to check the machine we used to get the SiC ingot.
Act II: A Rude Awakening
Reality, however, had other plans. When the cut was complete, we found that the cylinders were far from perfect. They were misshapen, with rough surfaces and significant dimensional inaccuracies. They looked less like the product of a precision tool and more like they had been crudely ripped from the block. We meticulously checked our machine settings and parameters, but everything was in perfect order. Our ultimate tool seemed to have met its match.
We were left baffled. What could cause the same technology to perform so differently on two seemingly identical materials?
Act III: The Truth Emerges
Through in-depth analysis and research, we uncovered the surprising truth. The SiC we had successfully cut before was fundamentally different from this new, challenging material. We learned that SiC exists in many different crystalline structures, known as polytypes. These different atomic arrangements give the materials slightly different physical properties, including varying degrees of hardness.
We discovered that the SiC used in our second test was a harder, more complex variant. The core reason for the failed attempt was not the machine’s inability to cut the material, but its inability to cut it precisely.

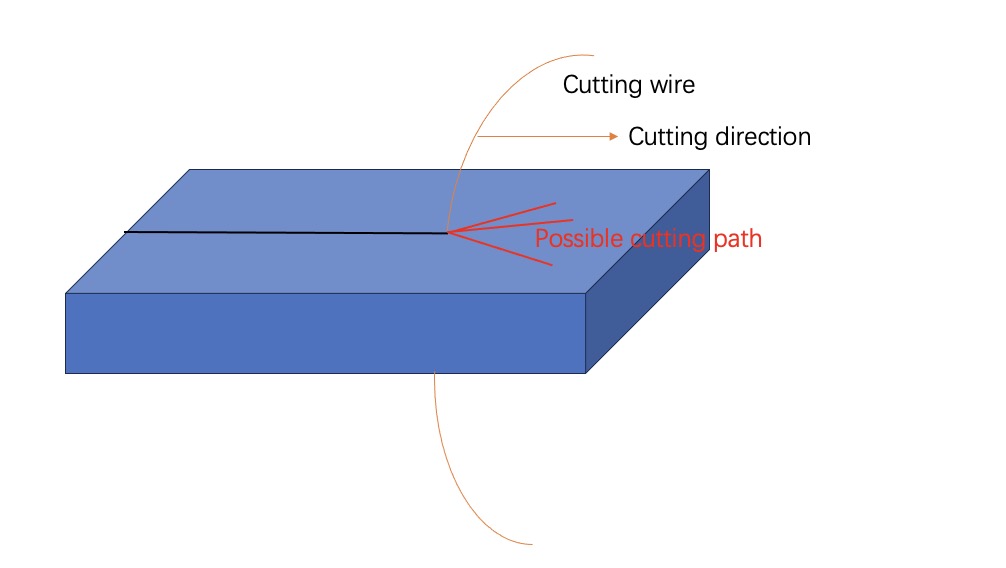

The immense resistance from this super-hard SiC caused the flexible diamond wire to subtly bend and deviate from its intended path. This is a crucial limitation of a flexible cutting process. When the cutting resistance becomes too great, the tool’s pliancy, which is normally an advantage, becomes an obstacle to achieving geometric accuracy. The result was an uncontrolled cutting path and an imperfect final shape.
Act IV: The Challenge Awaits a Sequel
While our test did not yield the desired result, this is by no means the end of the story.
Our team believes that this challenge is entirely surmountable through process optimization and fine-tuning. We are confident that by making adjustments to parameters such as wire tension, feed rate, and cutting fluid composition, we can achieve a successful cut on this difficult material.
Unfortunately, the client provided a very limited number of samples, so we did not have the opportunity to perform the necessary follow-up tests to prove our theory.
This test, though not an immediate success, was an invaluable lesson. It demonstrated the power and versatility of our technology while also highlighting the unique and specific challenges posed by certain advanced materials.
We eagerly await the next opportunity to prove that with the right combination of expertise and innovation, no material is truly unbeatable.
